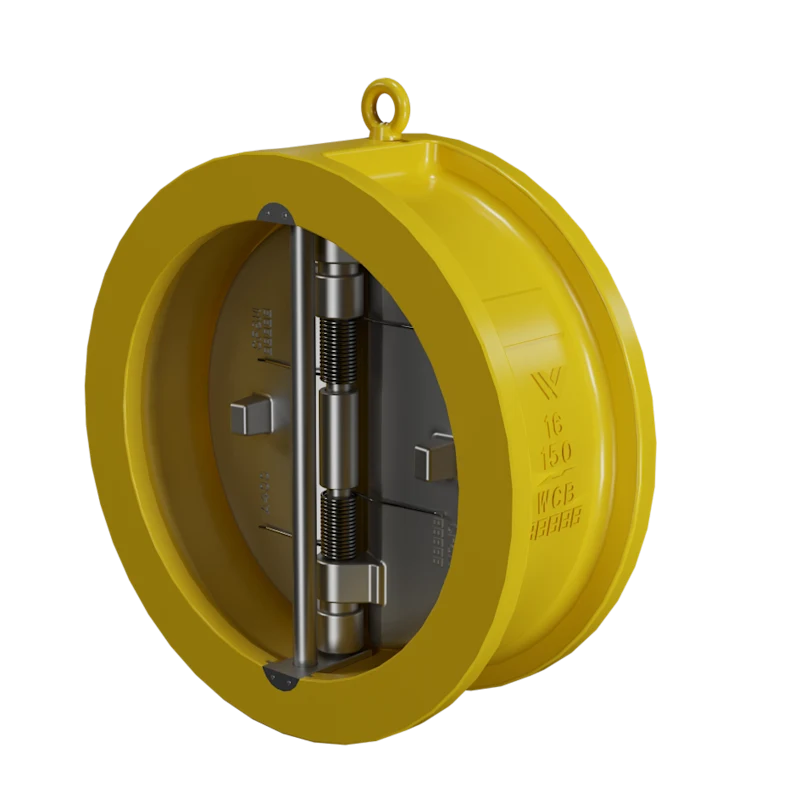

DUAL PLATE Check Valves
Vimec Valves produces a wide range of Dual Plate Check Valves in Wafer, Lugged, Double Flanged Design.
Technical Details
- Wafer, Lugged, Double Flanged Type
- Retainerless Design
- Size Range : 2” to 48”
- Rating : 150# to 2500#
- Non-Slam Type
- Low Cracking Pressure
- Cryogenic application upon request
- Designs to API 594, API 6D
- Material according to NACE MR-0175
- Testing to API 598
- Inherently fire safe
- Carbon Steel
- Stainless Steel
- Low Temp
- Alloy
- Duplex Steel
Related products
Frequently Asked Questions
What is a non-slam check valve and why does it matter?
A non-slam check valve (Vimec Dual Plate range) closes quickly as flow decelerates, preventing the water-hammer damage associated with slow-closing swing check valves.
What is the difference between the Forged Steel and Cast Steel Gate/Globe/Check ranges?
Forged Steel (¼" to 2", up to Class 2500) suits smaller-bore, high-pressure piping to API 602. Cast Steel (2" to 48", up to Class 2500) suits larger-bore process and pipeline sections to API 600/603, including API 6D slab gate configurations.
Do Vimec gate/globe/check valves support cryogenic service?
Yes, cryogenic application is available upon request across both ranges.
Where are Vimec valves manufactured?
Entirely designed, engineered and manufactured at our facility in Bolgare, Bergamo, Italy.
What quality certifications does Vimec hold?
ISO 9001:2015, PED Directive 2014/68/EU, API 6D, Fire Safe, Fugitive Emission ISO 15848-1, ATEX and ACHILLES.
